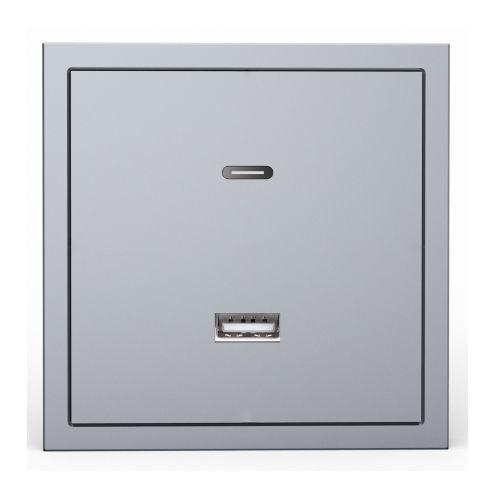

USB socket HDL-MP1-USB

wall-mountedsurface-mountcontemporary

Tile USB2.0 and Type-C Socket is equipped with one Type-C ​port and one USB port, providing fast charging for Type-C and USB 2.0 devices at the same time. Rated voltage: 220V AC, 50Hz Rated current: 2.2mA/220V AC Output power: 20W USB-A output: 5V/3A, 9V/2A, 12V/1.5A Type-C output: 5V / 3A, 9V / 2.22A, 12V / 1.67A USB-A + Type-C output: 5V/3A MAX. Working temperature: -5℃~45℃ Working relative humidity: ≤90% RH, non-condensed Storage temperature: -20℃~60℃ Storage relative humidity: ≤93% Dimensions (W X H X D): 86×86×30.5 (mm)（with plastic frame) Net weight: 102.7g（without plastic frame)/113.7g（with plastic frame) Housing material: Flame-retardant PC Installation: Wall box Protection rating (Compliant with EN 60529): IP20
