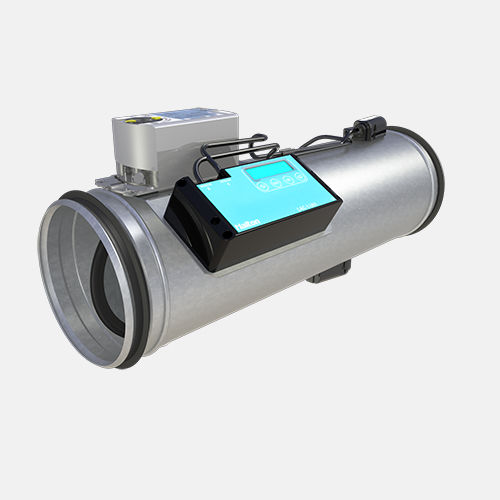

Metal ventilation damper MUC

for pressure relieffor building

Quick to install due to the individually pre-calibrated airflow values. This airflow damper is maintenance free because the dust doesn´t effect the measurement sensors. Halton Max Ultra Circular (MUC) has wide measurement range. Variable (VAV) and constant (CAV) airflow control applications Supply and exhaust installations Enables flexibility in terms of space layout design Quick to install due to the individually pre-calibrated airflow values. This airflow damper is maintenance free because the dust doesn´t effect the measurement sensors. Halton Max Ultra Circular (MUC) has wide measurement range. Application areas Variable (VAV) and constant (CAV) airflow control applications Supply and exhaust installations Insensitive to dust collection Enables flexibility in terms of space layout design Individually calibrated for higher accuracies Low pressure loss for reducing the noise level Can be connected to Buildings Management System (BMS) Halton Max Ultra Circular (MUC) technical performance: Velocity range 0,5 — 10,0 m/s General Measurement Uncertainty Accuracy ±5 % Minimum Safety distance 1D Expected Measurement Uncertainty, when correct installation parameter is applied ± % or l/s depending, which is the greatest of the percentage or the absolute value for the specific product size. Dim. 100 = ±5 % or ±1,00 l/s Dim. 125 = ±5 % or ±1,25 l/s Dim. 160 = ±5 % or ±2,5 l/s Dim. 200 = ±5 % or ±4,0 l/s Dim. 250 = ±5 % or ±6,5 l/s Dim. 315 = ±10 % or ±10 l/s Note: The measurement uncertainty is defined in laboratory conditions and may be greater in practical installations, where non-optimal installation situations or multiple consequent disturbances may exist.
