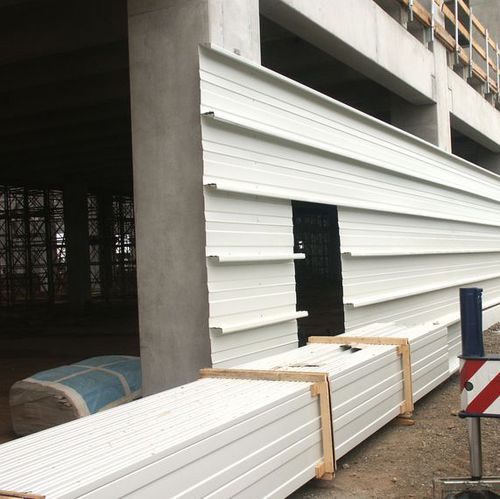

Steel fastening system HTU

for facade claddingroofexterior

■ - Ideal anchoring basis in concrète members in combination with self-tapping screws ■ - Reliable and economical solution to anchor Windows, sliding doors, and métal roofing ■ - Suitable for tension and shear loads The HALFEN HTU channel deal for fixing of metal sandwich, cassette and profiled trapezoidal sheeting; easy fixing using self-tapping screws. Suitable for both shear and tension loads. Thanks to the innovative channel and filler shape and the corrugated pattern in the channel, the new generation of HTU is installed completely in the required concrete cover and therefore avoids any problems with the main reinforcement. Secure and reliable • - Innovative shape-design and corrugated pattern ensure reliable anchorage • - The polystyrene filling prevents the self-tapping screw from hitting the concrete • - Building authority approved (DIBt) • - The type marking on the back of the channel allows easy identification of the channel even after installation Quick and economical • - Simple installation in the concrete cover • - One channel type, regardless of reinforcement layout • - Easy installation in the precast plant and at the building site
