Adjustable mini crane RETURN ARROW hydraulicfixedlifting
Add to favorites
Compare this product
Characteristics
- Structure
- adjustable, hydraulic
- Support
- fixed
- Other characteristics
- lifting
- Lifting capacity
350 kg
(772 lb)- Working height
47 m
(154'02" )
Description

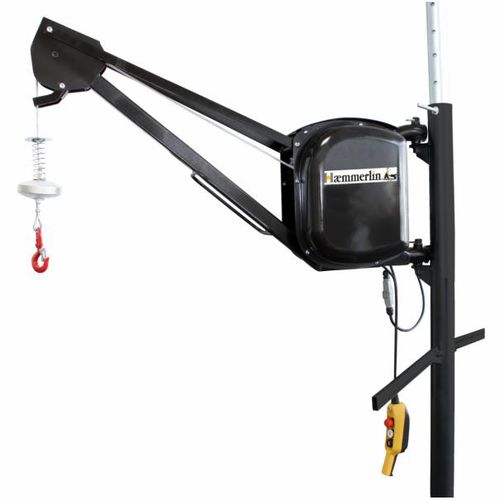

Electric return arrow winch, for renovation or layout sites.
Removable remote control 24 V.
Strong, light, very handy, simple and easy to install indoor. Can be transformed into a balcony crane.
The return pulley arrow offers a smoother cable winding with less cable wear.
The whole winch can swivel around the fixing support 200°.
Single-phased electric motor 220 V - 50 Hz, power 1,5 kw.
Lifting speed: 24 m/min - Lifting cable length 50 m, Ø 6 mm
Upper limit switch incorporated into the winch. Security system preventing the reverse winding of the cable on the reel.
Fixing supports are not included. Accessories sold separately.
Weight: 85 kg
