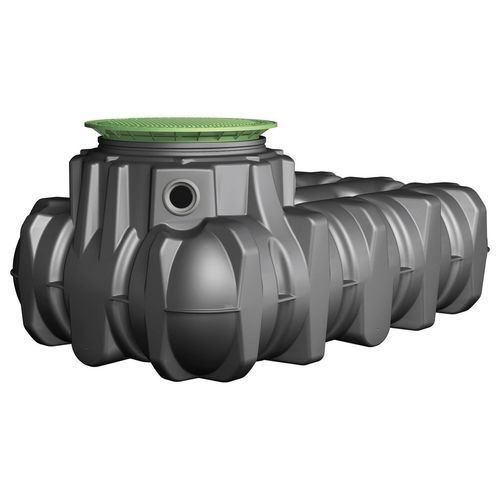

In-ground tank Platin

rainwaterstainless steelplastic

The Platin flat rainwater tank was specially developed for rainwater harvesting. It is available in sizes of between 1,500 and 7,500 l. A low installation depth is needed, therefore, a short installation time and low costs are granted. • Low installation depth means a short installation time and low installation costs • Integrated filter technology due to tank filter packages • Suitable for vehicle loading (in combination with a Telescopic dome shaft with cast iron lid) • Groundwater-stable up to the tank shoulder thanks to extremely stable design • Easy transport due to low weight • Secure investment thanks to 15-year warranty • The Platin tank can be extended in any way Technical details Accessibility Earth covering with loading capacity [mm] 700 - 1000 max. axle load [t] 2.2 max. vehicle weight [t] 3.5 max. vehicle weight with reinforced concrete slab [t] 60 Groundwater installation Earth covering with groundwater installation [mm] 700 - 1200 Installation max. earth covering [mm] (without groundwater, vehicle loading) 1200
