Heavy load freight elevator 1500 Z/ZP
for construction sitebuilding

Heavy load freight elevator - 1500 Z/ZP - GEDA GmbH - for construction site / building
Heavy load freight elevator - 1500 Z/ZP - GEDA GmbH - for construction site / building
Add to favorites
Compare this product

Characteristics

Technical characteristics
for heavy loads
Market
for construction site, building

Description

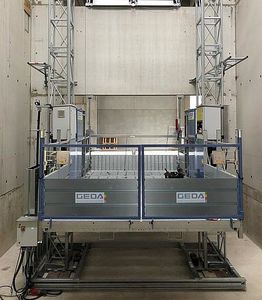

The GEDA 1500 Z/ZP has two separate control systems and can be used either as a material hoist only or as a transport platform for passengers and materials. The transport platform control with a speed of 12 m/min is activated for transporting passengers and materials. For transporting construction materials only, the device is switched to the material hoist mode with a lifting speed of 24 m/min. One device, numerous possibilities: the double-mast GEDA 1500 Z/ZP transport platform ideally adapts to virtually any conditions on site thanks to the convenient modular system with 14 different platform versions and different load capacities. The large loading platform variants of the GEDA 1500 Z/ZP offer plenty of space – even for transporting particularly heavy and bulky materials. Despite high load capacities of up to 2000 kg, the proven double mast system ensures a stable and smooth travelling motion. GEDA UNI-X-MAST System An ingenious system: can be used on all GEDA rack and pinion hoists from 300 kg to 2,200 kg load capacity. GEDA Corrosion Protection The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life. Automatic lubrication device standard The automatic lubrication system reduces maintenance costs. Cargo - Persons and material Mast system - GEDA UNI-X-MAST Load capacity (material) - 2000 kg Load capacity (persons) - 7 Persons Lifting height - 100 m Lifting speed - 12 m/min / 24 m/min Power supply - 2 x 3 kW / 6.1 kW / 400 V / 50 Hz / 32 A
