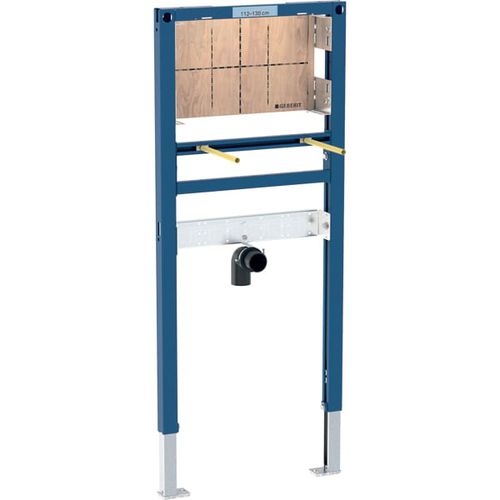

Wall-mounted washbasin installation unit 111.493.00.1

Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame For drywall construction For installation in part- or room-height prewall installations For installation in room-height installation walls For installation in part- or room-height Geberit Duofix system walls For installation of washbasins For concealed taps For floor constructions 0–20 cm Self-supporting frame, powder-coated Frame with ø 9 mm drilling holes for fastening in wood frame construction Galvanized feet Feet adjustable 0–20 cm Non-slip leg supports Rotatable foot plates Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails Fastening distance for washbasin 5–38 cm Mounting plate adjustable in height and depth Mounting plate made of veneered wood, waterproof bonded Building material class B2 in accordance with DIN 4102-1, resp. class D-s2, d0 in accordance with DIN EN 13501-3 Formaldehyde release class A in accordance with EN 1084, resp. Class E 1 according to EN 13936 Fastening for connection bend, height-adjustable and sound-absorbing Connection bend made of PE-HD, ø 50 mm Seal ø 44 / 32 mm 2 threaded rods M10 Fastening material
