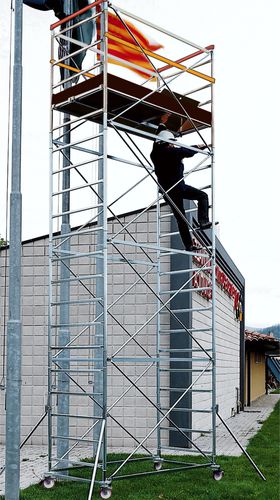

Galvanised steel scaffolding ORIO

on casters

Base dimensions 1.80 x 1.00 m Total maximum height 8.98 m • Rectangular section rungs dimensions mm 40 x 20 with deel no-slip scorring installed every 29 cm allow each upright to be used like a real vertical ladder and to position the platforms and intermediate railings with the utmost ease • Sturdy tubing in Ø 38 x 1.5 mm steel section metal • Schort outrigger for support D.L.81 • Safe, strong pawl locks. No bolts or screws to tighten • High-density good quality rust-inhibiting galvanizing treatment • Frigerio brand name and year of manufacture on each scaffold • Manual containing assembly, use and disassembly instructions A working tower of intermediate size, both as to height reached and overall dimensions. It comprises a strong, sturdily built rectangular base formed by four pieces, which can be fitted with screw outriggers (optional) to compensate for up to 35 cm difference in height and allow the entire structure to remain even more stable.
