Mechanical lock SAFE P | P600

doorcammultipoint

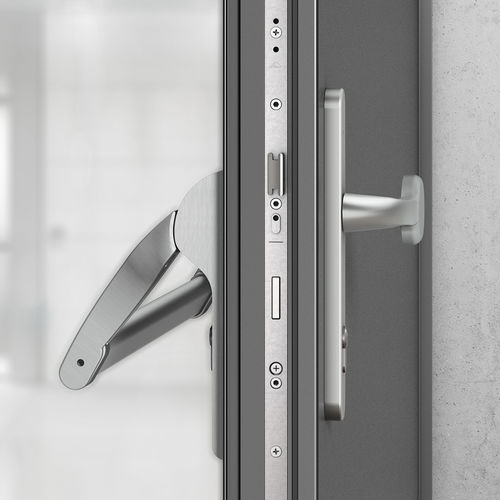

Roto Safe P | P600 is the mechanical multipoint locking system certified in accordance with DIN EN 179 for emergency exit doors in non-public buildings. Its operating safety makes it ideal for apartment buildings, the main doors of which have to be opened from inside without a key. In buildings occupied by users / visitors who are familiar with the infrastructure, such as offices, schools and factory halls, it is unlikely that panic will occur in a hazard situation. It can be assumed here that the users / visitors are familiar with the escape routes and doors and how the door locks work. The multipoint lockings feature a split spindle function E: it is always possible to open the door from the side on which the hazard is present, while unauthorised opening from outside should, however, be prevented at all times. A fixed knob is also fitted on the outside so that the escape door can only be unlocked and locked using a key. Roto Safe P600 locks may only be used in conjunction with free cam cylinders and with jointly certified combined knob and lever handle sets. It must be possible to unlock the escape door with a single movement. The operating force required for this must not exceed 70 N (approx. 7 kg). The locks are designed for use in main entrance doors in all frame materials.
