Silent functioning
Three fan speed
Fittings for continuous draining pipe connection
Air flow 2300 mc/h
Weight 140 Kg

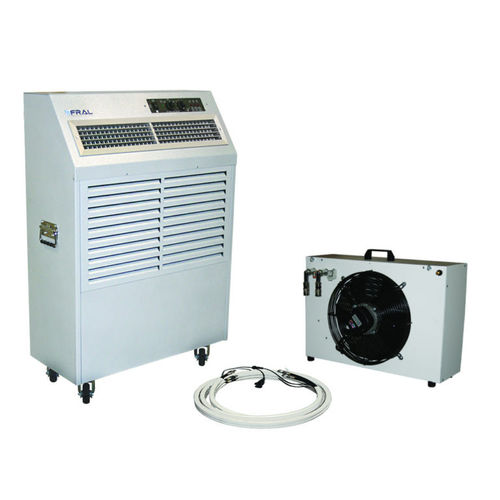

This single fan air conditioner with Iarge volume air movement from 1,500 m³/hr to 3200 m ³ /hr is i deally suited to cool Iarge office areas, data centres and workspaces. The FACSW (6.7kW or 27.0 kW) split unit has been designed for a fast rental installation and start up.
FACSW is a freestanding unit and can cool specific areas by utilising the three speed fan outlet at front of the unit. Installation literally takes minutes and hoses are supplied in lengths of 5m, 10m, 20m and 30m.
This High-capacity portable air conditioning units, provided with an external unit can be positioned up to 30m away from the central body and equipped with the connecting pipes with glycol fast connection. The FACSW is designed using a self contained chilled water system. The water circulates through a water cooled condenser where the heat is absorbed and then is pumped through the water lines to the outdoor unit where the water is cooled.
The unit has an automatic thermostat, which requlates the local air temperature to the set level required and is capable of operating down to a temperature of 10°C.
FRAME
Structure with panels made of sturdy galvanized steel, painted with epoxy powder ensuring high resistance to atmospheric agents and aggressive environments. The panels are removable to allow a quick inspection and maintenance of the internal parts.
COMPRESSOR
Rotative compressor mounted on vibration dampers. Provided with resistance on the housing and thermal safety.
