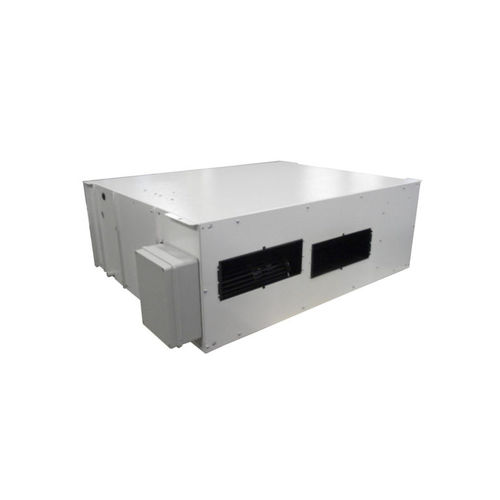

Ceiling dehumidifier DRC66

ductindustrialcommercial

Compact dimensions Ecologic gas R134a Ermetic compressor Silent Three fan speed Functioning without water Isothermic It can be ducted Rated average power consumption 790 W Air flow 560 mc/h Refrigerant R134a Weight 52 Kg The DRC series of dehumidifiers are used for moisture control where there is a cooling system with radiant panels. The dehumidifiers of the series DRC have standard battery of pre-and post-cooling, dehumidifiers are isothermal. The NA version is a normal dehumidifier that works without connecting to the chilled water circuit. The DC version can also work in cooling mode always combined with the dehumidification in order to ensure optimum control of temperature also. The devices are particularly quiet, ducted versions are provided of the intake and discharge and delivery plenums. STRUCTURE Dehumidifiers serious DRC consist of a body made of hot galvanized steel with removable panels for easy inspection and maintenance. The frame is pre-assembled, has brackets for fixing to the masonry. COMPRESSOR I the compressor is of type alternative hermetic , with the thermal protection device and acoustic insulation, is mounted on vibration dampers to reduce the vibrations. REFRIGERANT CIRCUIT Consisting of evaporator and condenser with copper pipes and aluminum fins 2.8 mm step. The cooling circuit is hermetically sealed. Capillary, filter drier in silica gel, high pressure (deu-climate version only). FAN MOTOR The fan inside the model DRC is centrifugal type impeller with d. 144 mm. Fan Motor with capacitor and switch to 6 speed.
