The unit is equipped with quick release water connections
Silent fan motor
Nice design
Adjustable air discharge grill
Electronic control
Remote control (optional)
Single phase standard connection
Motorised 3 way valve
Automatic thermostat

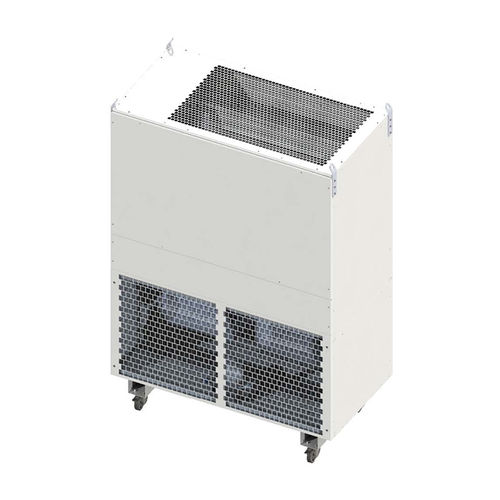

The professional Fral Fan Coils are a light-weight portable unit capable of offering up to 3,600 m³/hr air flow at maximum fan speed.
Cooling capacity (water 7/12°C, 27°C / 60%)
50 kW
Heating capacity (water 80/70°C, 10°C/50% ambient)
125 kW
Working temperature range
10/50 °C
Water on Coil
5/80 °C
Fluid pressure drop
48 kPa
Max working pressure
6 Bar
Condensate drain connection
3/4" hose tail
Fluid coupling
32 mm / 1 1/4" camlock
Power supply
230/1/50 Hz
Max absorbed power
3,2 kW
Max current absorbed
5,2 A
Current L.R.A.
14 A
Total airflow
5000-6000-8000 m³/hr
Available pressure
210-200-150 Pa
Max air throw
10/12/18 m
Sound pressure level (at 3 meters free field)
58 dB(A)
Lenght
790,5 mm
Width
1508 mm
Height (without wheels)
1864 mm
Weight
129 kg
