Design software GABION
construction managementgeotechnical calculationretaining wall calculation

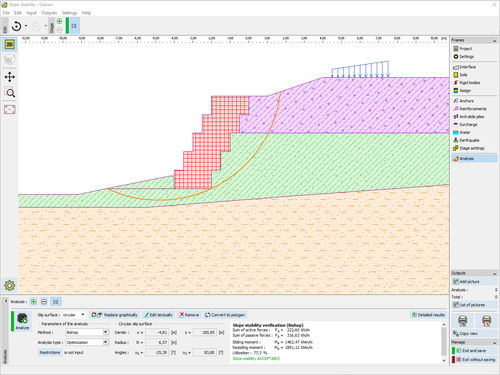

Design software - GABION - FINE - construction management / geotechnical calculation / retaining wall calculation
Design software - GABION - FINE - construction management / geotechnical calculation / retaining wall calculation
Design software - GABION - FINE - construction management / geotechnical calculation / retaining wall calculation - image - 2
Design software - GABION - FINE - construction management / geotechnical calculation / retaining wall calculation - image - 3
Design software - GABION - FINE - construction management / geotechnical calculation / retaining wall calculation - image - 4
Add to favorites
Compare this product


Characteristics

Function
design, construction management, geotechnical calculation, retaining wall calculation, analysis
Applications
for concrete structures

Description

This program is used for gabion wall design. It allows analysis of any structure shapes including overhangs requiring anchoring. Main Features Verification analysis can be performed employing EN 1997-1, LRFD or classical approach (limit states, factor of safety) EN 1997 – option to choose partial factors based on National Annexes EN 1997 – option to choose all design approaches, consider design situations Internal stability analysis (overturning, slip, bearing capacity of foundation soil) Generally layered soil environment Built-in database of soil parameters Arbitrary number of surcharges applied to structures (strip, trapezoidal, concentrated load) Arbitrary number of inserted forces (anchors, safety fences, etc.) Modelling of water in front of and behind structures, modelling of artesian water Check of gabion material (rock) General shape of terrain behind the structure Front face resistance in front of the structure (at rest, passive, reduced passive) New types of foundation below the gabion wall (strip footing, piles) Berms in front of the structure Analysis of earth pressures in effective and total parameters Possibility to consider minimum dimensioning pressure Earthquake effects (Mononobe-Okabe, Arrango, Chinese standards) Supports mesh overhangs with anchorage Multiple construction stages

Catalogs

No catalogs are available for this product.

See all of FINE‘s catalogs

Other FINE products

Geotechnical Software GEO5
