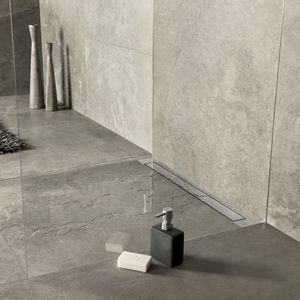

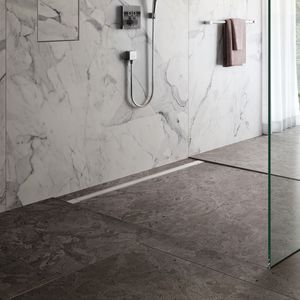

Easy Drain Modulo Design Z-2 linear shower drain gives your bathroom its own identity. The modern and stylish Z-2 grate is installed with a subtle, widened frame on the short side. This series is standard supplied with height adjustable frame (TAF) and pre-assembled sealing membrane (WPS) for easy installation and complete water drainage.
DRAINAGE CAPACITY
according to EN 1253
SIPHON
Easy to clean
SUPPLIED AS
Complete set
TILE ADJUSTABLE FRAME
Height adjustable 7 - 18 mm
WATER PROTECTION SYSTEM
10-year warranty
AVAILABLE LENGHTS
800 - 1200 mm
Shower Drain model
Rectangular shower drain
Application
New construction, Renovation
Certification
cUPC, DIN 18534, ETAG-022
Substrate
Concrete / Sand Cement, Lewis sheets, Wooden floors
Floor finish
Glass Mosaic, Thin tiles, Tiles / Mosaic
Max. drainage capacity entrance (l/min)
25, 28, 33, 34
Installation depth (incl. grate) (mm)
63, 70, 83, 87
Installation depth (mm)
70, 77, 90, 94
Connection (⌀)
40, 50 (Global) / 56 (UK)
Height adjustable feet included
Yes
Outlet type
Fixed outlet, Rotatable outlet
Water seal (mm)
28, 30, 50
Built-in set
M1-30 | Fixed outlet | Water seal 30 mm
Installation option
Floor, Wall
Outlet
Horizontal, Horizontal (Vertical outlet optional)
Location in shower
Between two walls, Free in the floor, One-sided, Three-fold
Max. drainage capacity wall (l/min)
32, 33, 41, 42
MaxDrainageCapShowerDrain
32, 33, 41, 42
Pre-assembled sealing membrane (WPS)
Yes
Siphon characteristics
Cleanable, Height adjustable, Pivotable & adjustable
Grate
Chrome-plated stainless steel
Grate pattern
Zero / Closed
TAF frame type
TAF (Tile Adjustable Frame)
Frame material
Stainless steel (304)
