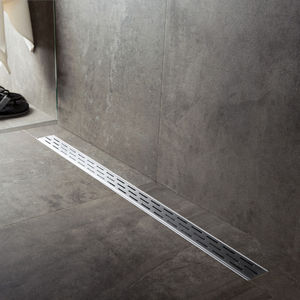

Brushed stainless steel linear shower drain EDCOMTFF 500-30
high-resistance

Brushed stainless steel linear shower drain - EDCOMTFF 500-30 - ESS Easy Drain - high-resistance
Brushed stainless steel linear shower drain - EDCOMTFF 500-30 - ESS Easy Drain - high-resistance
Brushed stainless steel linear shower drain - EDCOMTFF 500-30 - ESS Easy Drain - high-resistance - image - 2
Brushed stainless steel linear shower drain - EDCOMTFF 500-30 - ESS Easy Drain - high-resistance - image - 3
Brushed stainless steel linear shower drain - EDCOMTFF 500-30 - ESS Easy Drain - high-resistance - image - 4
Brushed stainless steel linear shower drain - EDCOMTFF 500-30 - ESS Easy Drain - high-resistance - image - 5
Brushed stainless steel linear shower drain - EDCOMTFF 500-30 - ESS Easy Drain - high-resistance - image - 6
Add to favorites
Compare this product

Characteristics

Material
brushed stainless steel
Other characteristics
high-resistance

Description

Easy Drain Compact, the flattest linear shower drain in the world, is supplied as standard with an easy-to-clean water seal with inspection cover for simple access to the connection drainage pipe. The Compact FF has a pre-assembled sealing membrane with a width of approximate 10 centimeters, to guarantee a waterproof finish. AVAILABLE LENGTHS 500 - 2000 mm SUITABLE FOR Renovation projects WATER PROTECTION SYSTEM 10-year warranty SIPHON Easy to clean DRAINAGE CAPACITY according to EN 1253 SUPPLIED AS Complete set SHOWER DRAIN MODEL Rectangular shower drain SERIE Compact FF APPLICATION Renovation CERTIFICATION DIN 18534, EN1253, ETAG-022 SUBSTRATE Concrete / Sand Cement, Lewis sheets, Wooden floors FLOOR FINISH Glass Mosaic, Thin tiles, Tiles / Mosaic MAX. DRAINAGE CAPACITY ENTRANCE (L/MIN) 25, 34 INSTALLATION DEPTH (INCL. GRATE) (MM) 43, 63 INSTALLATION DEPTH (MM) 73, 93 CONNECTION (⌀) 40, 50 (Global) / 56 (UK) HEIGHT ADJUSTABLE FEET INCLUDED No, Yes DIMENSIONS (MM) 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm, 1300 mm, 1400 mm, 1500 mm, 1600 mm, 1700 mm, 1800 mm, 1900 mm, 2000 mm OUTLET TYPE Fixed outlet WATER SEAL (MM) 30, 50 BUILT-IN SET Compact 30 FF | Fixed outlet | Water seal 30 mm, Compact 50 FF | Fixed outlet | Water seal 50 mm INSTALLATION OPTION Floor OUTLET Horizontal LOCATION IN SHOWER Between two walls, Free in the floor, One-sided, Three-fold MAX. DRAINAGE CAPACITY WALL (L/MIN) 32, 42 MAXDRAINAGECAPSHOWERDRAIN 32, 42 PRE-ASSEMBLED SEALING MEMBRANE (WPS) Yes SIPHON CHARACTERISTICS Cleanable GRATE Tile GRATE PATTERN Zero / Closed ADJUSTABLE GRATE No WHEELCHAIR ACCESSIBLE Yes EXTENSION SET AVAILABLE No

Catalogs

CATALOGUE
CATALOGUE
185 Pages
Catalog 2018
Catalog 2018
297 Pages

Exhibitions

Meet this supplier at the following exhibition(s):

ISH 2025
ISH 2025

17-21 Mar 2025 Frankfurt am Main (Germany)

  • More information
    *Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
