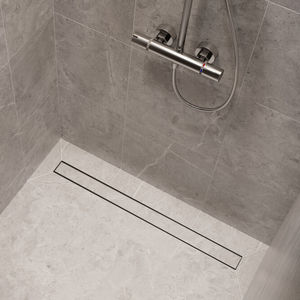

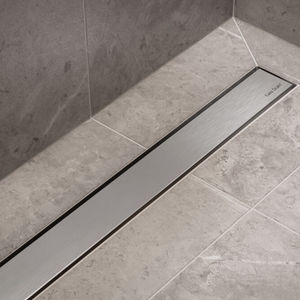

Basic Drain Steps is perfect for every type of bathroom.This linear shower drain is supplied with an easy-to-clean water seal and outstanding drainage capacity. Basic Drain Steps is delivered as a complete product and can be placed freely in the floor or mounted against the wall. With the innovative Steps and Water Protection System (WPS) installation is easy with a 100% watertight finish and a 10-year warranty.
AVAILABLE LENGTHS
500 - 1200 mm
WATER PROTECTION SYSTEM
10-year warranty
TILE ADJUSTABLE FRAME
Height adjustable 7 - 18 mm
DRAINAGE CAPACITY
according to EN 1253
SIPHON
Easy to clean
SUITABLE FOR
New construction and renovation
SUPPLIED AS
Complete set
SHOWER DRAIN MODEL
Rectangular shower drain
SERIE
Basic Drain
APPLICATION
New construction, Renovation
CERTIFICATION
DIN 18534, EN1253, ETAG-022
SUBSTRATE
Concrete / Sand Cement, Lewis sheets, Wooden floors
FLOOR FINISH
Cast / screed, Glass Mosaic, Thin tiles, Tiles / Mosaic
MAX. DRAINAGE CAPACITY ENTRANCE (L/MIN)
28, 31
INSTALLATION DEPTH (INCL. GRATE) (MM)
68, 100
INSTALLATION DEPTH (MM)
72, 107
CONNECTION (⌀)
50 (Global) / 56 (UK)
HEIGHT ADJUSTABLE FEET INCLUDED
Yes
DIMENSIONS (MM)500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm
OUTLET TYPE
Rotatable outlet
WATER SEAL (MM)
28, 50
BUILT-IN SET
Basic Drain | Rotatable outlet | Water seal 28 mm, Basic Drain | Rotatable outlet | Water seal 50 mm
INSTALLATION OPTION
Floor, Wall
OUTLET
Horizontal (Vertical outlet optional)
LOCATION IN SHOWER
Between two walls, Free in the floor, One-sided, Three-fold
MAX. DRAINAGE CAPACITY WALL (L/MIN)
33, 36
MAXDRAINAGECAPSHOWERDRAIN
33, 36
PRE-ASSEMBLED SEALING MEMBRANE (WPS)
Yes
