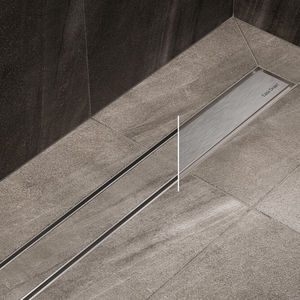

Easy Drain Basic Drain is perfect for every type of bathroom. Basic Drain comes standard with an easy-to-clean 50 mm water seal and offers outstanding drainage capacity, all according to EN 1253. This shower drain is supplied as complete product and can be placed free in the floor or mounted at the wall.
SUITABLE FOR
New construction and renovation
WATER PROTECTION SYSTEM
10-year warranty
SIPHON
Easy to clean
DRAINAGE CAPACITY
according to EN 1253
SUPPLIED AS
Complete set
SHOWER DRAIN MODEL
Rectangular shower drain
SERIE
Basic Drain
APPLICATION
New construction, Renovation
CERTIFICATION
DIN 18534, EN1253, ETAG-022
SUBSTRATE
Concrete / Sand Cement
FLOOR FINISH
Tiles / Mosaic
MAX. DRAINAGE CAPACITY ENTRANCE (L/MIN)
28, 31
INSTALLATION DEPTH (INCL. GRATE) (MM)
67, 92
INSTALLATION DEPTH (MM)
72, 106
CONNECTION (⌀)
50 (Global) / 56 (UK)
HEIGHT ADJUSTABLE FEET INCLUDED
Yes
DIMENSIONS (MM)
500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm
OUTLET TYPE
Rotatable outlet
WATER SEAL (MM)
28, 50
BUILT-IN SET
Basic Drain | Rotatable outlet | Water seal 28 mm, Basic Drain | Rotatable outlet | Water seal 50 mm
INSTALLATION OPTION
Floor
OUTLET
Horizontal (Vertical outlet optional)
LOCATION IN SHOWER
Between two walls, Free in the floor, One-sided, Three-fold
MAX. DRAINAGE CAPACITY WALL (L/MIN)
33, 36
MAXDRAINAGECAPSHOWERDRAIN
33, 36
PRE-ASSEMBLED SEALING MEMBRANE (WPS)
Yes
SIPHON CHARACTERISTICS
Cleanable
GRATE
Tile
ADJUSTABLE GRATE
Yes
