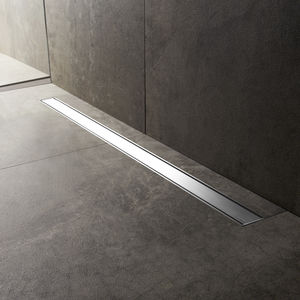

Brushed stainless steel linear shower drain MODULO TAF LOW

high-resistance

Easy Drain Modulo TAF Low linear shower drain, the perfect solutions for all your bathroom wishes. The subtle stainless frame provides an elegant look and fits seamlessly into your bathroom floor. Furthermore, the revolutionary TAF-technology and Water Protection System guarantee easy installation and a waterproof finish. TAF Low was specially developed for application of thin flooring between (3-13 mm). AVAILABLE LENGTHS 500 - 1200 mm WATER PROTECTION SYSTEM 10-year warranty SIPHON Easy to clean DRAINAGE CAPACITY according to EN 1253 TILE ADJUSTABLE FRAME Height adjustable 3 - 13 mm SUPPLIED AS Complete set SHOWER DRAIN MODEL Rectangular shower drain SERIE Modulo TAF Low APPLICATION New construction, Renovation CERTIFICATION cUPC, DIN 18534, EN1253, ETAG-022 SUBSTRATE Concrete / Sand Cement, Lewis sheets, Wooden floors FLOOR FINISH Cast / screed, Glass Mosaic, Thin tiles, Tiles / Mosaic MAX. DRAINAGE CAPACITY ENTRANCE (L/MIN) 25, 28, 33, 34 INSTALLATION DEPTH (INCL. GRATE) (MM) 63, 70, 83, 87 INSTALLATION DEPTH (MM) 63, 70, 83, 87 CONNECTION (⌀) 40, 50 (Global) / 56 (UK) HEIGHT ADJUSTABLE FEET INCLUDED Yes DIMENSIONS (MM) 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm OUTLET TYPE Fixed outlet, Rotatable outlet WATER SEAL (MM) 28, 30, 50 BUILT-IN SET M1-30 | Fixed outlet | Water seal 30 mm, M1-50 | Fixed outlet | Water seal 50 mm, M2-35 | Rotatable outlet | Water seal 28 mm, M2-50 | Rotatable outlet | Water seal 50 mm INSTALLATION OPTION Floor, Wall OUTLET Horizontal, Horizontal (Vertical outlet optional) LOCATION IN SHOWER Between two walls, Free in the floor, One-sided, Three-fold
