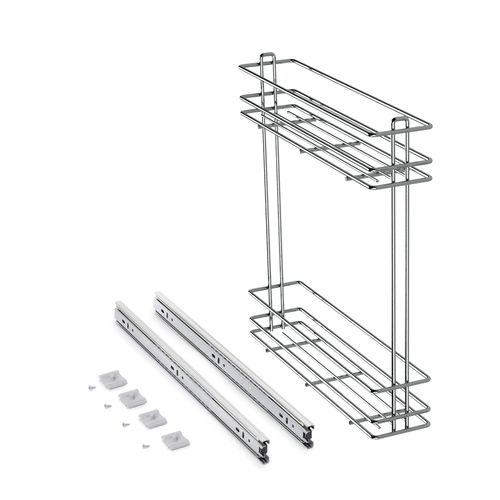

SupraMax pull-out bottle rack for kitchen base units made of chrome-plated steel, ideal for small spaces or auxiliary units.
Easy to install: The fixing is on the left side of the unit and has a total door adjustment (5D), ±2.5mm to the sides, ±2.25mm in depth and up to 13mm in height.
The structure is made of chrome-plated steel with 2 levels and incorporates partial extraction ball bearing slides. Load capacity up to 15kg.
• Pull-out bottle rack with two baskets, ideal for small spaces in the kitchen.
• Suitable for units with a minimum internal width of 112mm and a minimum depth of 474mm. Compatible for modules with 16, 18 and 19 mm board.
• Load capacity up to 15Kg and has a total door adjustment (5D). Being ±2.5mm at the sides, ±2.25mm in depth and up to 13mm in height.
• Easy mounting on the left side by means of 2 partial extraction ball bearing slides.
• Elegant structure in chrome-plated steel finish.
