Aluminum sliding system 6030562

plasticfor cabinet doorfor furniture

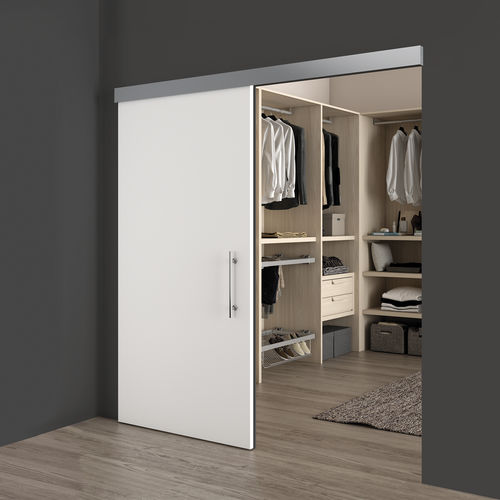

System for hanging wooden sliding doors that is ideal for dividing rooms into different spaces. The system consists of an upper rail, a set of hangers with soft closing, a front cover profile, plastic side covers and 5 wall fasteners. The boards are not included. The upper rail along which the door hangers slide and the front cover to conceal the system are made of anodized aluminum and are supplied within 2 meters. The hangers consist of wheels with ball bearings and a clearance of 10 mm, with a blocking system to prevent doors from coming loose. In addition, they have a lower guider by means of a rotating wheel and can be easily fitted because they do not need prior machine work to install them in the rail. They incorporate a bidirectional soft closing device that acts both on opening and closing and load capacity of up to 80 kg. Five wall fasteners are incorporated into the kit for when ceiling fastening is not possible and whose maximum separation between them must not exceed 500 mm and a set of side covers of gray plastic to hide the hardware. • System for hanging wooden sliding doors (except the boards) for ceiling or wall installation with thicknesses of 18 to 40 mm. • With bidirectional soft closing device and load capacity of up to 80 kg. • Sliding set of 4 ball bearing wheels, with 10mm height regulation and anti-derailment system. • Upper rail and clipped front cover in anodized aluminum at 2 meters and gray plastic side covers. • Includes 5 wall fasteners for when ceiling fastening is not possible.
