Table extension 2045069

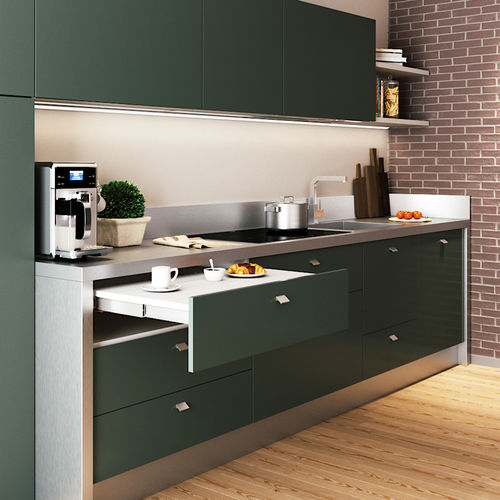

The Shot system is designed to provide an extra table or work surface for your kitchen. Very useful when preparing food or enjoying an aperitif, the Shot system opens and closes with a single movement, it is also hidden inside the same module occupying the space of a drawer. The system must be installed in modules with a width between 450 and 1,200 mm and a depth of at least 560 mm. The guides of the system allow to pull-out a 490 mm surface with a load capacity of 80 kg. In addition, they have a safety locking mechanism to prevent unintentionally closing the table. The board that makes up the support surface is not included. • System to obtain an additional surface or table in kitchen environments, 490 mm in length. • Valid for modules 450 to 1,200 mm width, 560 mm minimum depth and 80 kg. load capacity. • The guides have a locking system when they are open to prevent unintentional closing. • The screws for the installation and mounting instructions sheet are included. • The profiles that make up the guides are made of extruded aluminium and with a stainless anodized finish.
