Furniture flap system 1214215

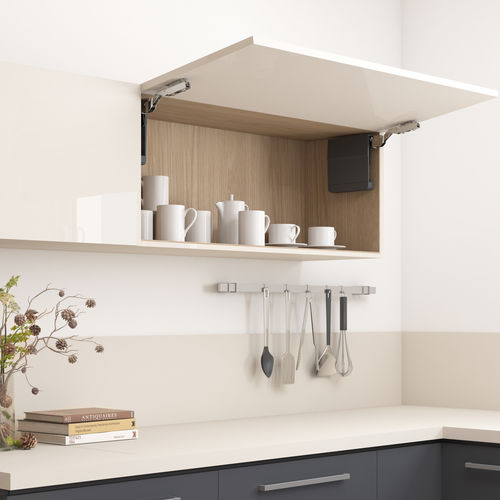

Compass system for lift-up doors in kitchen and home units. This system stands out for its smooth and precise operation, without the need for hinges. It opens to an angle of 107º to fully use the space and make the unit more easily accessible. It is designed for module widths of up to 1,200 mm and heights of between 250 and 600 mm, with panel thickness from 16 mm to 22 mm. It comes in three different strengths It is supplied with decorative covers, in anthracite grey finish and white. It also includes the hooks and screws required for fitting and a marker template. • Compass system designed for lift-up doors for fitting without the need for hinges and with soft closing. • Door opening angle of 107º to fully use the space and make access easier. • For modules measuring up to 1,200 mm width and between 250 and 600 mm high, with panel thickness of 16 mm to 22 mm. • It has two settings: set the strength of the mechanism and position of the door in three dimensions ±2 mm. • Removing the door without tools thanks to its easy clip system. • Compass for strengths required between 480 - 1.250 (see calculation formulae). • The set of compasses includes hooks, screws for fastening and include the marker template. • Includes the decorative covers in white.
