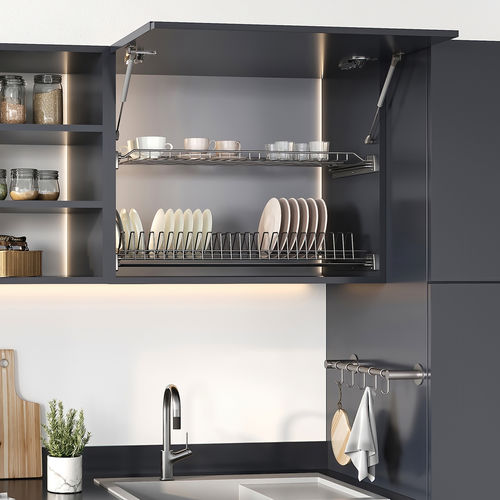

Furniture flap system 1261124

The Thin furniture pistons are characterised by their elegant design, thanks to their small diameter Ø12mm. In addition, they are made of steel with a matte nickel finish. These damping pistons provide a smooth and cushioned rise of the lifting doors in home, kitchen and bathroom furniture. They are supplied individually bagged in kit format with door and side hooking. Product features: • Damper piston for wooden lift-up doors, which provide a smooth rise of the door in home, kitchen and bathroom furniture. • The piston force is 5 kg and with a stroke of 80 mm. • It can be mounted on the right or left side of the furniture, but for doors greater than 450 mm wide, the use of 2 pistons is recommended. • The mounting of the door hook is screwed and on the side of the cabinet it is done with an M6 mortise nut (included). • Each bag contains 1 piston, 1 wooden door catch, 1 side catch, 1 M60 mortise nut. • Made of steel with matt nickel painted finish. HOW TO CALCULATE THE MOUNTING: Add E+1 to calculate A and X, being E the thickness of the board. • For wooden and aluminium doors. • For overhangs other than 15 mm, calculate value A+15-overhang. • For doors wider than 450 mm the use of 2 springs is recommended.
