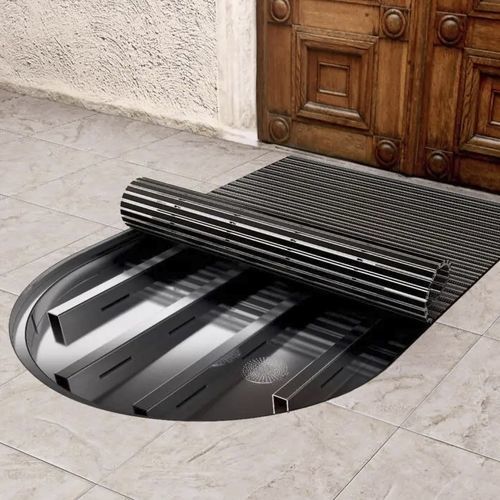

emco dirt collection wells are required to counter the increased dirt levels in heavily frequented entrance areas. Together with the emco MARSCHALL entrance mats (not when combined with a scraper bar or brush strip), they form an unbeatable unit in terms of effective cleansing and practicality.
Structure
A dirt collection well unit can consist of either a single well or multiple wells which may vary in width and depth, assembled in a modular fashion. From a visual and functional perspective, the entrance mat is manufactured either in the same size without a frame, or - more commonly - with a frame.
Special shapes
Dirt collection wells are also available in special shapes (such as rounded shapes) to ensure they are the perfect match for the building in question. Please contact us for further information.
Material
Aluminium, bonded and waterproof, interior completely smooth for easy cleaning. Also available in stainless steel (V2A) on request.
Support profile
Aluminium, stainless steel (V2A), max. spacing 300 mm with recesses for all-around water drainage. These profiles must run laterally at an angle of 90° beneath the profiles.
Additional data - The support for the entrance mat is integrated in the well.
Larger dimensions
Multiple well units are screwed together on site to make a single system.
Fittings
Available on request with drainage system and water drainage connection for multiple well units. We recommend one drainage system per well unit for multiple well units.
