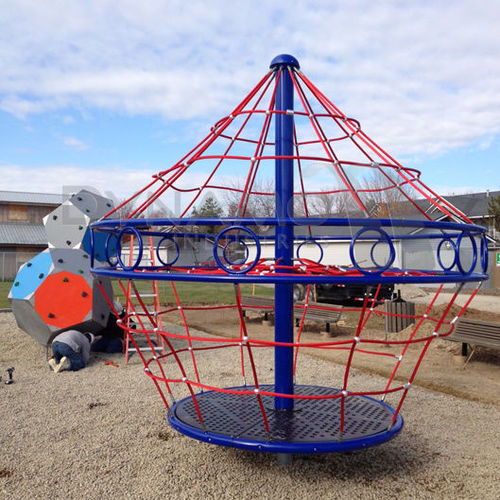

Child's playground spinner ASTRO WITH FLOOR

for playground

The Astro launches the merry-go-round into the future with a space-age look. Children love the flying-saucer design that helps their imaginations fly into orbit. Specifications Size -- Diameter 3.30 m Size -- Height 3.45 m Ages 5 - 12 yrs Capacity 25 Use Zone -- Diameter 9.30 m Use Zone -- Area 67.93 m2 Fall Height 2.40 m Product Features: MAIN SUPPORT POST: This inner support post provides support and stability to the rotational system. This will be constructed of 5 9/16" (141.3mm) OD schedule 40 galvanized steel pipe, embedded in a concrete foundation. ROTATIONAL POST: This outer support post provides the anchoring point for climbing nets and allows the unit to rotate as one. This will be constructed from 6 5/8" (168mm) OD schedule 10 steel pipe finished with polyester powder coating. The top will be finished with a 1/2" (13mm) thick top plate. Integrated climbing net connection points will be included on the top plate and along the rotational support post as required. Integrated connection points for the deck will also be provided as required. ROTATION: The Rotational Post will rotate along with all other parts of the play equipment in a way that prevents clothing entanglements or pinching. ASTRO MIDDLE RINGS: These will be 2 3/8" (60.3mm) OD steel tubing joined by 1 3/64" (26.7mm) OD steel tubing, finished with polyester powder coating. Rings will include integrated climbing net connection points as required. HORIZONTAL RINGS: These will be 2 7/8" (73.03mm) OD steel tubing finished with polyester powder coating. Rings will include integrated climbing net connection points as required.
