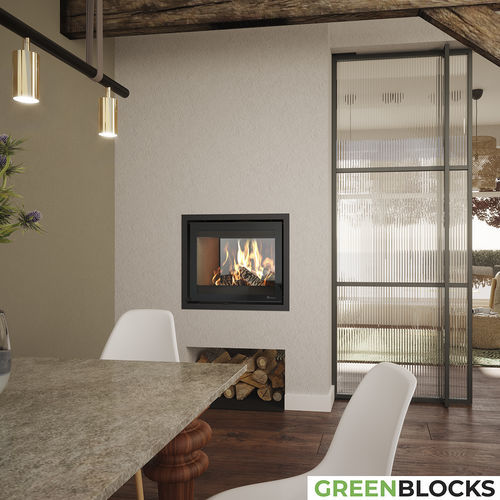

Prostyle fires have screen-printed glass that conceals the metal frames. The Prostyle Tunnel is a see-through wood stove that can be built into a pre-fabricated chimneybreast or room dividing wall. With hinged doors on either side, it is both stunning and practical. It has a heat output range from 9 - 12 kW and an efficiency rating of 83%.
Specifications
Brand - Dik Geurts
Series - Instyle/Prostyle
Category - Wood fires
EcoDesign Ready -
Energy efficiency class - A+
Model - Built-in
Fire view - Tunnel
Shape - Horizontal
Combustion system - Combustion air from living area
Suitable for passive houses -
Glass window - Screen-printed glass
Door type - Hinged door
Control - Manual control
S-Thermatik NEO -
Colours - Dark anthracite
Interior - Vermiculite natural
Max. log length (cm) - 52
Efficiency (%) - 83.0
CO emission (%-13% O2) - 0.079
Particulate Matter (mg/Nm3-13% O2) - 24
OGC/CxHy (mg/Nm3-13% O2) - 21
NOx emission (mg/Nm3-13% O2) - 28
Built-in depth (mm) - 542
Fire view width (mm) - 557
Fire view height (mm) - 448
Flue - Top
External air connection - Base
Convection connection -
230V necessary -
Approvals - EN13229, Flamme Verte, BlmSchV, EcoDesign
