Easy to install without penetrating the waterproofing
Variable, modifiable upon needs
Long lasting
The DRS is a modular railing system, fixed by ballast without penetrating the roof layers. Can be used to separate different roof areas.

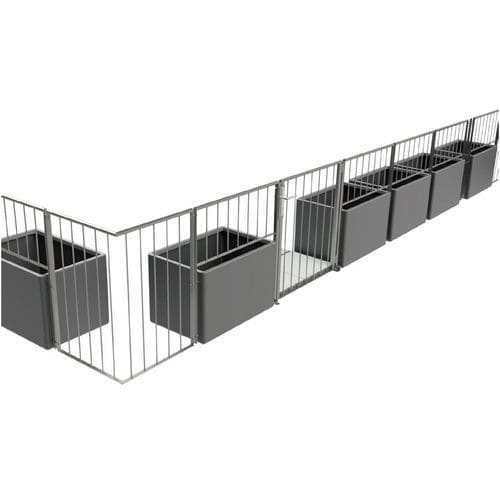

Modular railing system secured by ballast, without the penetration of the roof insulation, for the separation of roof terraces and different roof surfaces. The two main components are the railings and the planters which when filled provide the necessary ballast for stability. With the aid of the choice of the length of the spacer, it is possible to cover any floor plan with ease. Size of the railing module: 100x35x110 cm (LxWxH); material: hot dip galvanized steel. The planters are supplied with a 4 cm high water reservoir board and a filter geotextile. Colour: custom colours in RAL; material: frost- and break resistant polypropylene (PP); planter dimensions: 90x35x36.5 cm (LxWxH). Optional accessories: corner element, gate element. In order to fulfill its intended use, the railing system should be handed over after it is secured by ballast. The system has to be installed at least 2.5 meters from the roof edge and its two endpoints have to be connected to a vertical wall. Weight: 17,2 kg /lm.
