Galvanised steel railing DRS-STANDARD
with barsoutdoorfor balconies

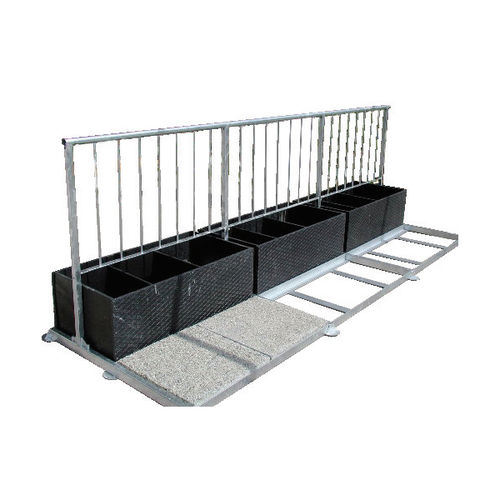

Galvanised steel railing - DRS-STANDARD - DIADEM - with bars / outdoor / for balconies
Galvanised steel railing - DRS-STANDARD - DIADEM - with bars / outdoor / for balconies
Add to favorites
Compare this product

Characteristics

Material
galvanised steel
Configuration
with bars
Location
outdoor
Applications
for balconies
Installation
on slab
Finish
matte finish
Color
black
Height

110 cm
(43.31 in)

Length

104 cm
(40.94 in)

Description

Easy to install without penetrating the waterproofing Variable, modifiable upon needs Long lasting The DRS is a modular railing system, fixed by ballast without penetrating the roof layers. Can be used to separate different roof areas. Modular railing system secured by ballast, without the penetration of the roof insulation, for the separation of roof terraces and different roof surfaces. Components: railing, support leg, ballast tray, fasteners. The ballast tray can ballasted with 50x50x5cm concrete pavement slabs (not included) and/or with filled planters (50x50x36,5 cm) available as accessory. Module dimensions: 104x112x110 cm (LxWxH); Material: hot dip galvanized steel. Optional accessories: planters in RAL colours, corner element, gate element. In order to fulfil its intended use, the railing system should be handed over after it is secured by ballast. The system has to be installed at least 2.5 meters from the roof edge. Weight (without ballast): 45 kg/lm.
