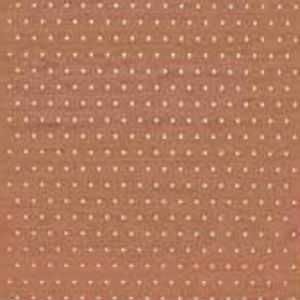

PAP system (perforated acoustic panel)
Perforated panels are the most economical way to get an acoustic treatment with a high degree of absorption. With several variations of patterns and hole diameters, different levels of absorption and aesthetic results can be achieved.
Uses:
Acoustic correction. Applicable to walls and ceilings.
Dimensions:
There are versions in large dimension panels for continuous walls and ceilings and also standardised ceiling panels in different versions to install with visible, semi-hidden, hidden and hidden practicable profiling.
wall covering panels:
used plates are often 2400x1200, 2400x600 and 1200x60mm. 16mm thick.
ceilings:
is usually more common to use 12mm thick plates in standardized measures of 1200x600, 1200x300 and 600x600, although other combinations are also possible.
Installation systems:
The different plates are available with different finishes depending on the type of perimeter assembly desired.
Materials and finishes:
The support material is always MDF fiberboard wood panels in standard or fireproof versions. Surface finishes can be raw, melamine, plywood, varnished or lacquered. Other options on request.
The panels may incorporate to the back and as an option, an acoustic veil to improve the sound absorbing qualities of the panel.
HOLE DIAMETER: 5mm
SPACING: 32x32mm align
PERFORATED SURFACE: 2%
