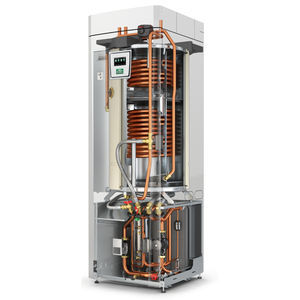

Geothermal heat pump EcoPart
residentialcommercialoutdoor

Geothermal heat pump - EcoPart  - CTC Enertech Group  - residential / commercial / outdoor
Geothermal heat pump - EcoPart  - CTC Enertech Group  - residential / commercial / outdoor
Add to favorites
Compare this product

Characteristics

Type
geothermal
Sector
residential, commercial
Interior/exterior unit
outdoor
Installation
split
Function
inverter
Certifications
class A+++, Class A++
Other characteristics
connected
Heat output

Min.: 5.9 kW

Max.: 21.3 kW

Noise level

34 dB, 39 dB, 42 dB, 43 dB, 46 dB

Exterior unit height

775 mm, 1,632 mm
(31 in, 64 in)

Exterior unit width

595 mm, 596 mm
(23 in, 23 in)

Exterior unit depth

673 mm
(26 in)

Description

The CTC EcoPart is a modern range of ground to water heat pumps. Delivering a COP of 5.04, with low noise and high performance which comes as standard! When you buy a heat pump from CTC, all the extras are included. But there are still some ingenious accessories that make life easier! A+++ energy rating with a COP of 5.04 EcoPart 400 offers 8 models outputs from 6 -30KW EcoPart 600 inverter model offers 2 outputs 12 & 16kW Single phase and three phase options Largest style phase model of 28Kw Compact size Low noise operation
