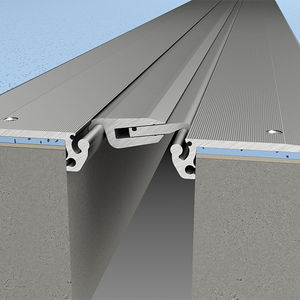

Bespoke metal joint covers with stainless steel flush fitting cover plates, available in standard and heavy duty options.
Joint Width: up to 50mm
Horizontal: up to ±25mm
Vertical: up to ±2mm
Lateral: up to ±12mm
SJ-S Load Capability: 250kg point load
SJ-HDS Load Capability: 1000kg point load
Recess mounted floor joint covers
Can offer a wide range of movements depending on configuration
Durable and low maintenance
Bespoke solution, made to order
Suitable for interior or exterior applications
Load capability: 250kg (SJ-S) 1000kg (SJ-HDS)
Cover plate / bearing plates: supplied in satin finished stainless steel
Other sections: supplied in mill finished aluminium as standard
Floor: fixings (by others) to suit substrate at 450mm centres and to achieve minimum 40mm embedment
NB: To ensure installation flexibility frames are not supplied pre-drilled.
