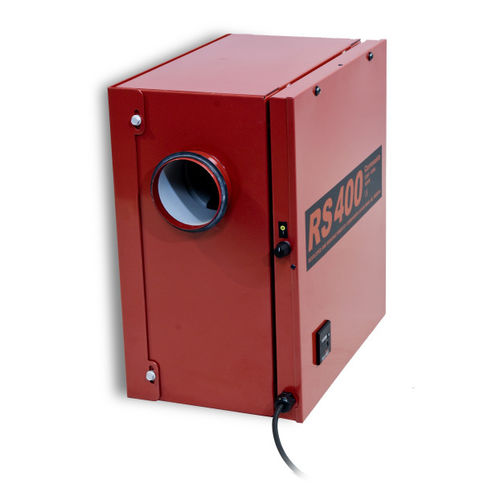

Wall-mounted air purifier RS 400

indoorresidentialdisinfection

Radon extractor RS 400 removes radon extremely effectively, with a variable, controllable, free blowing air volume of 50-370 m3/h. It has been developed for the decontamination of radon in houses with slabs on the ground or basements on a porous surface. Unlike traditional radon extractors, the fan motor of EC fan type in an RS400 makes radon extraction very energy efficient. RS 400 is also suitable for negative pressure ventilating floor joists, because it is quiet, energy efficient and has variable speed control. SOME ADVANTAGES OF RADON EXTRACTOR RS 400: Extremely powerful and effective against ground radon Suitable for single family homes or small buildings with porous ground conditions Can be connected to up to 6 m pipe on the pressure side and up to 30 m pipe on the suction side. Negative pressure under wrapping: up to 40 m drain hose on the suction hose and up to 6 m pipe on the pressure side Extremely quiet Equipped with energy efficient EC fan TECHNICAL DATA Air volume 50-370 m3/h Pressure 20-500 Pa Noise level 44 dB(A) Power consumption 105 W Normal consumption 10-25 W Power supply 230 V / 50 Hz Weight 15 kg Dimensions (L x W x H) 445 x 475 x 262 mm In order for the radon level in the house to be reduced, the air pressure under the foundation slab must be lower than that in the house. If the house is on very porous earth, an installation that can extract large volumes of air and can be controlled easily is usually necessary, all depending on the individual instance. To achieve this, RS400 is connected to a pipe system that sucks up an air/radon mixture under the foundation slab.
