Mobile dehumidifier CTR 10000

commercialindustrialadsorption

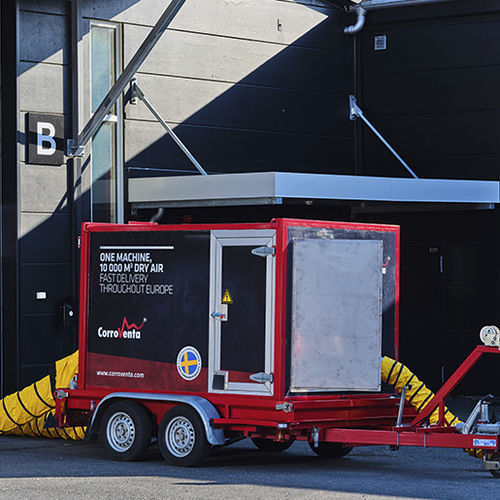

Highly efficient mobile adsorption dehumidifier for large and demanding work. Highly efficient mobile adsorption dehumidifier for large and demanding work. On a trailer, this CTR drier is always ready for rapid deployment wherever the catastrophe has occurred. Ideal for large, demanding drying jobs and building dehumidification. 10.,000 m3/h dry air, capacity 875 l/day. The drier can be lifted by a forklift truck or crane. TECHNICAL DATA Power supply 3 ~ 400 V 63 A Power consumption 36,2 kW Dry air - 1 fan 5000 m3/h 2,2 kW Dry air - 2 fans 10000 m3/h 4,4 kW Reg-air 1800 m3/h 0,75 kW Reg-power - one heater 15,5 kW Reg-power - two heaters 31,0 kW Capacity +20°C, 80% RF 875 l/day Weight 1080 kg Weight with trailer 1560 kg Size (L x W x H) 300 x 170 x 180 cm Size with trailer (L x W x H) 485 x 233 x 220 cm Article number 05000 Intended use The CTR 10000, a trailer based high capacity adsorption dryer, is developed and intended for construction drying and water damage restoration. Through use of adsorption drying, it does not have the same dependency on ambient temperature as condensation dryers have and functions even well below the freezing point. The trailer allows both crane lift as well as forklift transportation, and as it can be used both indoors and outdoors, the CTR 10000 is truly deployable, readily and easily used where ever required. As all other Corroventa machines, the CTR 10000 is very energy efficient. Features • Energy efficient • Service friendly • High Capacity • Hour counter • Robust
