Glass door hinge Biloba EVO VELA
aluminumconcealedhydraulic

Glass door hinge - Biloba EVO VELA - Colcom - aluminum / concealed / hydraulic
Glass door hinge - Biloba EVO VELA - Colcom - aluminum / concealed / hydraulic
Glass door hinge - Biloba EVO VELA - Colcom - aluminum / concealed / hydraulic - image - 2
Add to favorites
Compare this product

Characteristics

Product applications
glass door
Material
aluminum
Technical characteristics
concealed, hydraulic
Market
commercial
Style
contemporary
Opening angle
180°
Height

105 mm, 208 mm
(4.1 in, 8.2 in)

Width

25.3 mm
(1 in)

Thickness

25.3 mm
(1 in)

Maximum load

100 kg
(220.5 lb)

Description

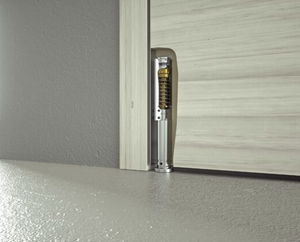

The new hidden oildynamic doorcloser hinge, for framed doors with a stop. The first Colcom hinge which is completely hidden into the profile, and adaptable to every project upon customer request. It maintains the same features as the Biloba Evo series hinges. Features: • Hydraulic Closing; • Invisible – hidden into the profile; • Customizable, in order to satisfy every specific project; • Adjustability of the closing speed; • Height regulation +/- 3 mm; • 90° Stop • Minimum dimensions 25×25 mm. The installation of the upper hinge is completed by the dedicated hidden lower hinge.
