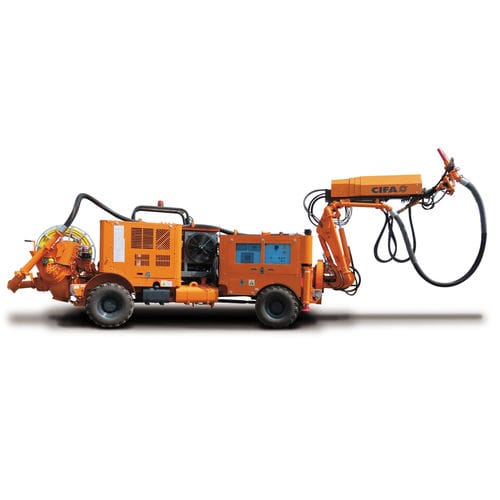

Concrete spraying machine CST 8.20

A brand new boom, designed and manufactured by CIFA and especially developed for mining and for small tunnels. Robust and at the same time versatile and extremely precise on nozzle placement, it has a vertical reach of 10 meters. A unique boom feature is that it can be unfolded and positioned in driving mode and once the machines has reached the work place. The boom has an horizontal slewing ring that allow the operator to follow the entire profile of the tunnel, at every height, with only one joystick movement on the proportional radio remote control. Central articulated turning chassis has small width dimension and high manoeuvrability. High clearance on front and back allows it to face off-road surfaces and serious slopes with great agility. The driving seat can be turned 180°. The boom, the chassis, the pumping unit and the additive dosing system UNIFLUX H1.0 are entirely designed, developed and manufactured by CIFA in order to ensure the best performance to our clients, on every jobsite. • Diesel engine D914L05 STEP III-A, 72 kW, air cooled TD3.6 L04 STEP III-B, 55 kW, liquid cooled catalytic silencer fuel tank 60 l • Driving cab FOPS + ROPS certification reversible driving position • Carrier chassis articulated frame 4 wheel drive axles planetary type ,Dana Spicer 1 speed max. 20 km/h • Uniflux H1.0 dosing system peristaltic pump with hydraulic drive electronic management • Concrete pump Electric operated proportional flow regulation electric vibrator fitted to the grid • Proportional radio-remote control n°1 transmitter safety cable
