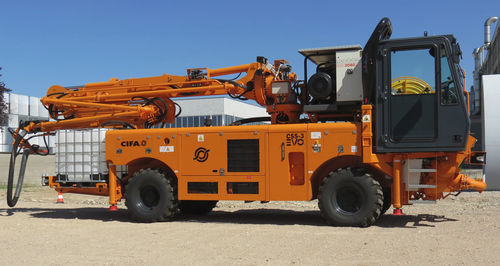

Mobile concrete pump CSS-3 EVO

truck-mounted

Diesel engine - D914L05 Step 3A, air cooled 72 kW - TCD3.6L04 Step 4F, liquid cooled 90 kW Driving cab FOPS certification reversible driving position Carrier chassis - 4 wheel drive - 4 wheel steering - axles planetary type, Dana Spicer - 2 speeds: 1st. gear max 8 km/h, 2nd gear max 26 km/h Uniflux H1.0 dosing system - Peristaltic pump with hydraulic drive ASP25 - Electronic management Concrete pump - Diesel and Electric operated - Proportional flow regulation - Electric vibrator fitted to the grid Proportional radio-remote control - n°2 transmitters - Safety cable Washing system: High pressure water pump, 50 l/min – 50 bar, Hydraulic drive, Nozzle and 10 m of pipe, Water tank 600 l, Handpump for concrete anti-adhesion protection Automatic lubrication in 8 points for: S valve, Pumping group mixer, Boom sliding turret and boom double trust block Electrical system - Carrier: 24 V, Battery 2 x 120 Ah, Alternator 55 A, Front lights 2 x 55 W, Rear lights 2 x 55 W - Shotcreting operations: Electric motor ABB 55kW IE3, Working lights N°6 x 45W-4800 lumen xenon, Working lights on hopper N°1 x 70W Nozzle brush movement One colour painting, RAL 2000
