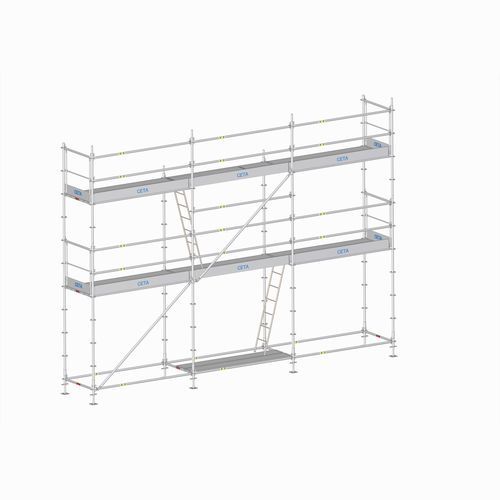

The scaffolding system in hot-dip galvanised steel with the multidirectional rosette is suitable for all types of construction.
Width 77 cm – Modules 44-50-77-100-110-150-180-200-250-300
Width 110 cm – Modules 44-50-77-100-110-150-180-200-250
System : With cross-braces and cross-beams, with an 8-way multidirectional rosette
Material : S235JR, S355JR steel
Tubes : Diameter 48.3 mm
Nominal thickness 3.2 mm
Finish : Hot-dip galvanised coating in accordance with UNI EN ISO 1461
Welding : In accordance with regulations UNI EN ISO 15607 and UNI EN 1418
Ministerial authorisation : For loads of 300 N/m2
EN 12811
Certification : Certificate of conformity of the scaffolding to European regulations EN 12810-1 and EN 12811-1
Width : 77 cm
Bay length : 44 / 50 / 77 / 100 /110 / 150 / 180 / 200 / 250 / 300 cm
Height : 200 cm
Width : 110 cm
Bay length : 44 / 50 / 77 / 100 /110 / 150 / 180 / 200 / 250 cm
Height : 200 cm
