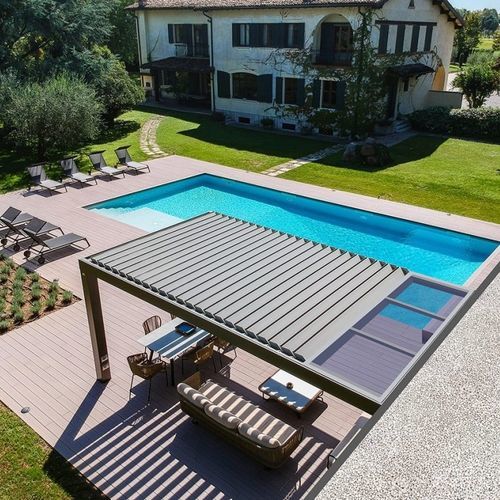

Self-supporting pergola R660

aluminiumglasswith mobile slats

Bioclimatic pergola with cold-cut portion of window frame in 6+6 PVB 1.52 glass. Fixed projection 1 m, luminous glazing portion useful 70 cm. The infix portion replaces 5 blades. Perimetrical water drain cm. 20×21,5 for the outflow of rain water in vertical poles. Roof made of aluminium blades W cm. 22 x H 4 cm. that can be orientated from 0° to 140°, complete with gaskets and lateral drain of water. The structure can offer a complete or a partial protection from sun, a perfect air conditioning and an assured shelter from rain, becoming a real living space. Maximal dimensions of single form: W mt 4.50 x P mt. 8.00 with 4/6 poles of cm. 20×20 only. Working by linear motor low-tension. Availability of options as LED lights, generating synergies between the new and the existing environments, offering each time personalized and original solutions. Bearing poles consent the application of sun-breakers or glass doors which are perfectly integrated to the classical vertical blinds.
