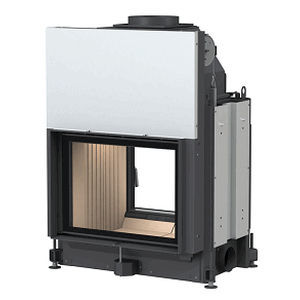

Wood-burning fireplace 51/67

built-inwalldouble-sided

Planning and installation - Stil-Tunnel 51/67 Tested according to EN 13229 W EN 13229 W Values measured at Rated capacity Accumulation Suitable for all construction types according to rules OK OK EEI 108.6 108.6 Data for functional demonstration Fire wood volume kg/h 3.3 5 Combustion performance kW 14 23 Flue gas mass flow g/s 10.5 22 Flue gas temperature after: attached steel smoke hood °C 190 250 Necessary supply pressure Pa 13 13 Combustion air consumption m3 /h 40 40 Combustion air connection Ø mm 125 125 Heat distribution Insert / heat accumulator % 50 / - 50 / - Glass pane (single / double) % 50 / - 50 / - Cross-section of gratings 1) Convection air cm2 700 / 200 / - 700 / 200 / - Supply air cm2 700 / 200 / - 700 / 200 / - Minimal oven surface for closed construction type Heat dissipating surface m2 5.5 5.5 Minimal distances of the fireplace to insulation layer cm 8 8 to mounting floor cm 2 2 Thermal insulation without / with air gratings 2) Mounting wall cm 14 / 10 16 / 12 Floor cm 2 2 Ceiling cm 16 / 12 25 / 18 Brick lining for combustible wall cm 10 10 Weight Fireplace / combustion chamber kg 67 Meets requirement/limit values for: Germany/ Austria / Suisse / Norway 1.BImSchV (Stufe 2) / 15a BVG (2015) / LRV / NS 3059
