Steel profile GYPFRAME SIF1
U-shapedfor ceilinginsulating roof type

Steel profile - GYPFRAME SIF1 - British Gypsum Limited  - U-shaped / for ceiling / insulating roof type
Steel profile - GYPFRAME SIF1 - British Gypsum Limited  - U-shaped / for ceiling / insulating roof type
Add to favorites
Compare this product


Characteristics

Material
steel
Cross section
U-shaped
Applications
for ceiling, insulating roof type
Other characteristics
custom

Description

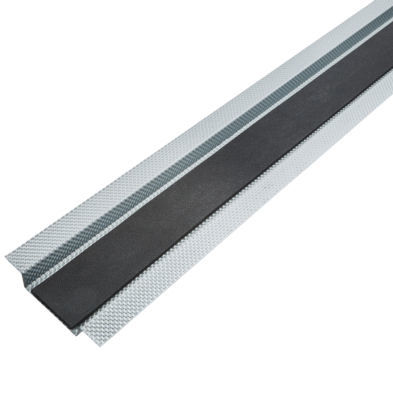

Cut down footstep noise from upstairs neighbours. The Gypframe SIF1 Floor Channel is an insulated metal 'top-hat' channel that reduces impact noise through timber separating floors. The constant noise of footsteps from above can be a nightmare in flats and apartments. This channel helps prevent it by isolating the upstairs walking surface from the main floor structure. A key component of the GypFloor Silent system, the channels are simply laid on top of timber joists, up to 63mm wide, before the walking surface is fitted. They include a special neoprene isolator and side flanges to support the Gyproc Plank that is installed between the joists, adding mass for extra noise reduction. Key facts Unique UltraSteel® rigidised channels Integral neoprene damper strip Support flanges for Gyproc Plank For timber joists up to 63mm wide Minimal 7mm overall increase in floor height
