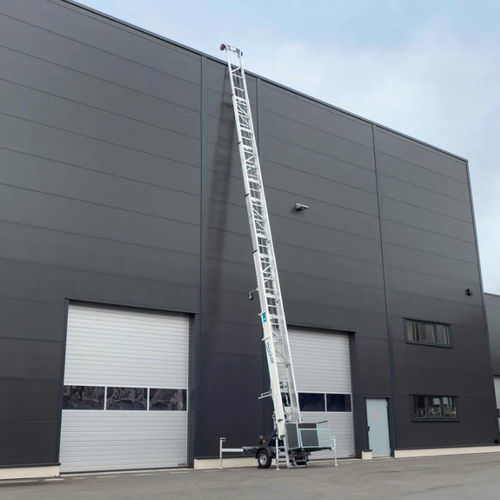

Compact freight elevator Junior 18

for construction site

Smallest installation dimensions thanks to proven compact design Product description As the most compact construction lift in the series, the Junior 18 provides fast, effortless material transport of loads up to 250 kg at transport heights up to 18 metres. It offers comprehensive equipment options, such as electro-hydraulic operation in the Basic and Comfort versions, the addition of an knee joint and further rail extensions at the best price-performance ratio. The Junior 18 has the tried-and-tested rail package with integrated drawbar, while its chassis is very compact with four plug-in crank drop outriggers. Thanks to its low weight and short transport length, the inclined lift is easy to manoeuvre in narrow spaces and only requires a footprint of around 5 m2. The endless swivelling range allows it to be used on all four sides of the chassis. Thanks to its low axle load of 750 kg, the trailer can be towed to the construction site with a car and class B driving licence. Powerful LED rear lights ensure road safety. Your Advantages Convenient operating options The Junior is equipped with a fold-out control panel as standard, which can be supplemented with additional options. For example, the carriage travel can optionally be steplessly controlled using a joystick. Electro- hydraulic operation is also available in the Basic and Comfort versions. In the Basic version, control is via a wired hand switch. The Comfort version additionally offers the option of operating the lift from the head section. When operated from above, the machine stops at the 2 m safety stop to protect ground personnel.
