Telescopic crane AHK 30 KS

luffing jibhydraulicmobile

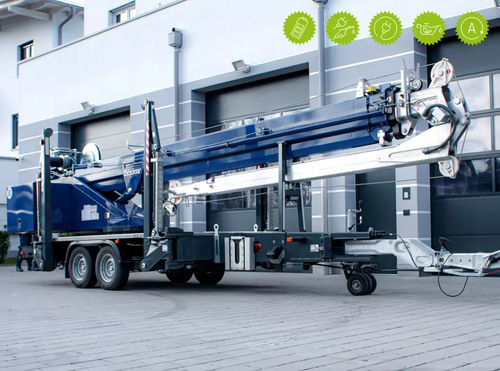

Sophisticated aluminium design meets flexible outriggers Product description The AHK 30 KS trailer crane makes no compromises and combines many advantages of other models in one machine. It is equipped with variable outrigger control and four foldable swivelling outriggers that can be set up independently of each other at three different angles. The practical swivel drawbar reduces the overall length of the crane. This means that the AHK 30 KS stands securely even in tight spaces and makes optimum use of the installation area. It can easily cope with payloads of up to 1,500 kg and reaches boom lengths of up to 30 metres. The double telescopic mast can be raised to 85° using a hydraulic cylinder. A powerful hydraulic cylinder extends the mast system in combination with flyer chains. The jib, which can be extended twice to a length of up to 9.10 metres, can be raised hydraulically to 160°. All crane functions are executed precisely via a smooth control system. Electric motor Hybrid Bio hydraulic oil Electric drive with battery Stop-and-Go-Automatic Your advantages Working in the smallest of spaces Thanks to its standard swivel drawbar with ball coupling or truck towing eye, the trailer crane requires even less space on the construction site. This means that the AHK 30 KS can be used in a variety of ways, even in confined spaces. High ground clearance and self-levelling The innovative foldable swivelling outriggers of the trailer crane compensate for uneven surfaces of up to 50 cm without the need for an additional substructure. They can easily be swivelled past or over obstacles.
