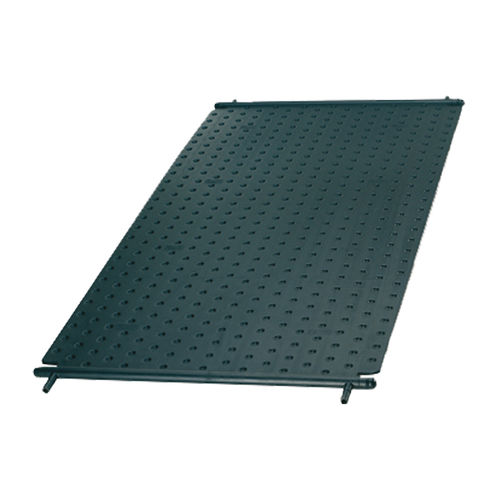

Solar absorber SUN PLATE

Environmentally friendly and very easy to install: The Sun Plate swimming pool absorber is a real all-rounder. All installation applications can be achieved with just one type of absorber in two sizes because eight variable outlets are available on the absorber. Functions Walk-on area and full flow Horizontal and vertical installation are possible Low pressure loss due to the special absorber design Sun Plate – technical details Versions - Available in 2.2 m² and 1.19 m² Connections - Eight variable connections (four with 25 mm and four with 40 mm) depending on the type of connection Maximum pressure - 3 bar Weight - 14 kg (2.2 m²) or 8.5 kg (1.19 m²) Width - 1100 mm (both models) Height - 15 mm (both models)
