APPLICATION

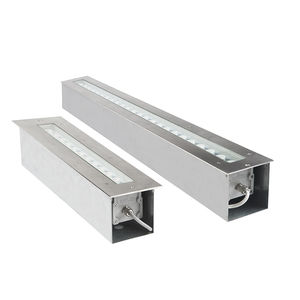

LED high-performance inground with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Inground made of aluminium die cast,
Aluminium and stainless steel.
Clear 6mm safety glass
Silicon base seal gasket
Mounting bracket made of steel.
Electrostatic powder coating.
Lens angle 8°- 25°- 45°- 60°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 110 – 240V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP67
Impact strenght IK09
Operation temperature -25°C / +55°C
Weight: 9,50 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.
LAMPS
Module connected wattage 24W
Luminaire connected wattage 35W
Ambient température ta max = 55 °C
NW
Module désignation 15L50460NC-24
Colour température 4000K
Colour rendering index Ra>80
Module luminous flux 3698Im
Luminaire luminous flux 3476Im
Luminaire luminous efficiency 144 Im /W
WW
Module désignation 15L50460NC-24
Colour température 3000K
Colour rendering index Ra>80
Module luminous flux 35141m
Luminaire luminous flux 3303Im
Luminaire luminous efficiency 137 Im / W
Standard colour température 4000K
Also available with 3000K on request.
