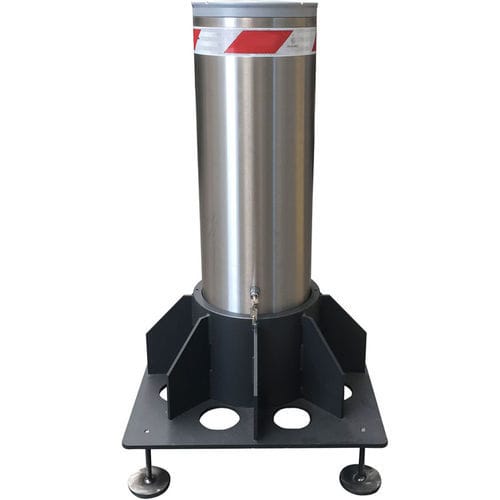

High-security antiterrorist bollards (height 900mm)
The FR M50 bollard is a removable anti-ram devices capable of stopping a 7,5T vehicle at a speed of 80km/h (or 3,5T at 112km/h)
Technical specifications
Rated in compliance with - PAS68:2013 V/7500(N3)/80/90
IWA 14-1:2013 V/7200(N3C)/80/90
DOS K12 & ASTM M50
Impact resistance - 2.000.000 joules
7,5T à 80km/h
3,5T à 112km/h
Obstacle diameter - 275 mm
Foundation depth - 360mm
• Finishing: the bollard is available in painted steel and in brush stainless steel.
• More fixed basements can be installed in the ground than available moving cylinders
