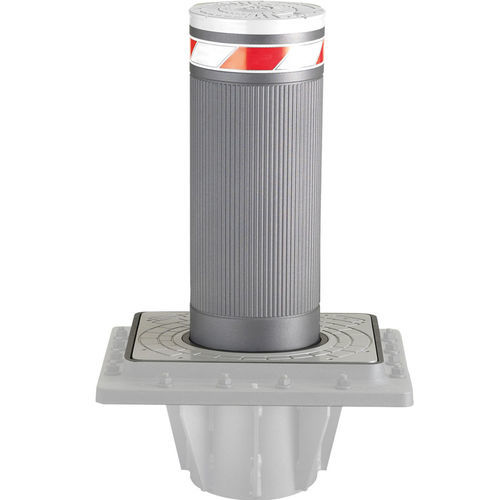

High-security antiterrorist bollards (height 700 mm)
The FB M30 fixed bollards (or passive bollards) are anti-ram devices capable of stopping a 7,5T vehicle at a speed of 48km/h (or 3,5T at 64km/h)
Technical specifications
Rated in compliance with - PAS68:2013 V/7500(N3)/48/90
IWA 14-1:2013 V/7200(N3C)/48/90
DOS K4 & ASTM M30
Impact resistance - 750.000 joules
7,5T at 48km/h
3,5T at 64km/h
Obstacle diameter - 275 mm
Foundation depth - 1300 mm
Fixed obstacle - Unscrewable with counterframe
• The operation can be signaled by LEDS on the obstacle.
• Finishing: the bollard is available in painted steel (With or without ribs) and in brush stainless steel.
