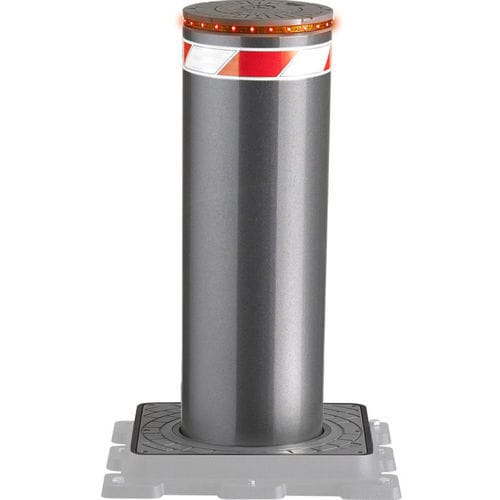

Security bollard RB C60_800

access controlstainless steelpainted steel

Urban or anti vandalism bollards (height 800mm) The RB C60 automatic bollards (or active bollards) are retractable anti-ram devices capable of stopping a 3,5T vehicle at a speed of 48km/h (or 1,5T at 80km/h) Technical specifications Rated in compliance with - PAS68:2013 V/3500(N1)/48/90 IWA 14-1:2013 V/3500(N1)/48/90 ASTM C60 Impact resistance - 400.000 joules 3,5T at 48km/h 1,5T at 80km/h Obstacle diameter - 275 mm Foundation depth - 1440 mm (or suspended pit) Rising / lowering speed - 5.5 / 3.5 sec Emergency Fast opening (Rising time) - 1 sec Hours / Days cycles - 300 / 2000 • In case of power failure, the obstacle can be lowered by a manual operation directly on the hydraulic pump. Additional options allow the automatic lowering of the obstacle OR to be lowered from a remote location OR an uninterrupted operation (UPS) • The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising barrier. • Finishing: the bollard is available in painted steel and in brush stainless steel. • The hydraulic pump is built in the pit of the bollard • The control unit is housed in a cabinet which could be up to 80m remote. It's could be also integrated in a ground retractable cabinet
