Power socket NWP222

audioquadruplewall

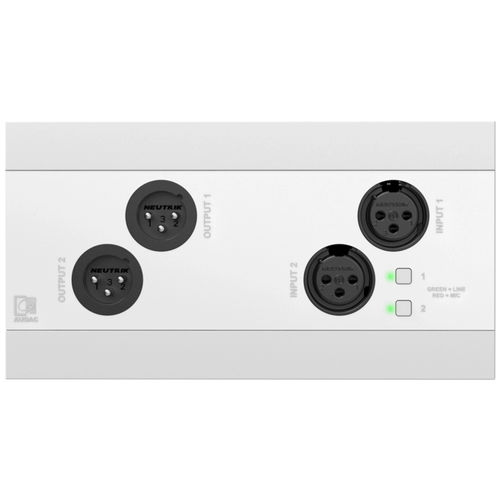

Network in- & output panel - 2 x XLR in- & out + BT (4 x 2 CH) 2 x XLR inputs & outputs Integrated Bluetooth receiver 4-channel Dante™/AES67 Internal mixing & DSP processing The NWP222 is a Dante™/AES67 network input panel, featuring two XLR input and output connectors and an integrated Bluetooth receiver, which can be used to transmit or receive audio signals in a Dante™ audio network. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones. Various further integrated functions such as integrated equalizing, automatic level control and other device settings can be configured through the AUDAC Touch™ app. The front panel is finished with high-grade materials such as hardened glass makes them blend into any environment. These wall panels are compatible with standard EU-style in-wall boxes, these wall panels are the ideal solution for solid and hollow walls. The IP-based communication makes it future-proof while also being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation. A POWERFUL SOLUTION Internal mixing & DSP Instead of processing on the receiving side we designed the NWP series so that you will put the signal right on your network once by processing on the side where it still matters. PLUG-AND-PLAY INSTALLATION PoE network-based connection The IP-based communication makes it future-proof while also being backwards compatible with many existing products.
