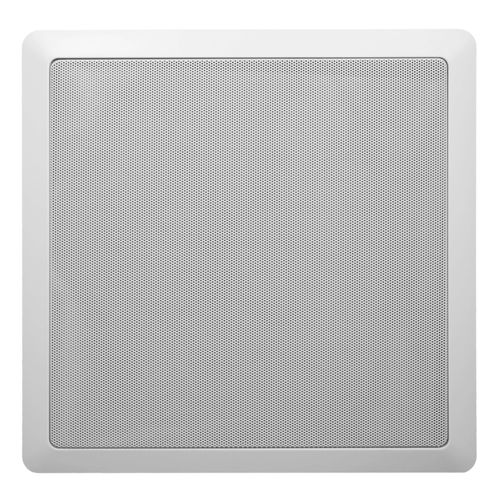

Built-in subwoofer CS1000S

passiveresidentialindoor

The CS1000S is a 10” in-wall/ceiling subwoofer speaker with a super slim design. The built-in depth of merely 104 mm makes the CS1000S fit into almost every wall or ceiling and it can be painted in any desired colour to blend in with the environment the speaker is used in. This subwoofer offers a superb reproduction of the low frequencies and is ideal to be used in combination with other ceiling or in-wall loudspeakers like the WS and CS series. It is made of strong ABS and equipped with the necessary installation accessories and connection clamps for easy mounting. The cone of the speaker is treated to be completely moisture proof, so it can also be used in damp rooms or outside applications. The CS1000S features a 10” low frequency range woofer with an output power of 100 Watt RMS and a maximum power of 200 Watt. The speakers impedance is 8 Ohm and it can produce a sound pressure level up to 108 dB and has a stunning frequency response ranging from 28 Hz to 300 Hz, which is really low sound ensuring a brilliant reproduction of the low frequencies. Technical specifications Available models CS1000S/W - White version ral9010 System specifications Impedance - 8 Ω Sound Pressure (Max. W/1m) - 108 dB Frequency - Response (± 3 dB) - 50 Hz - 250 Hz Range (-10 dB) - 28 Hz - 300 Hz Crossover - Frequency - 250 Hz Dispersion - Horizontal - 180° Vertical - 180° Connectors - Cable clamps Drivers - LF - 10” Product Features Built-in depth - 95 mm Mounting - Claw clamps Colours - White (RAL9010) (CS1000S/W) Accessories - Included - Mounting brace Recommended applications Hotels Bars & Restaurants Retail
