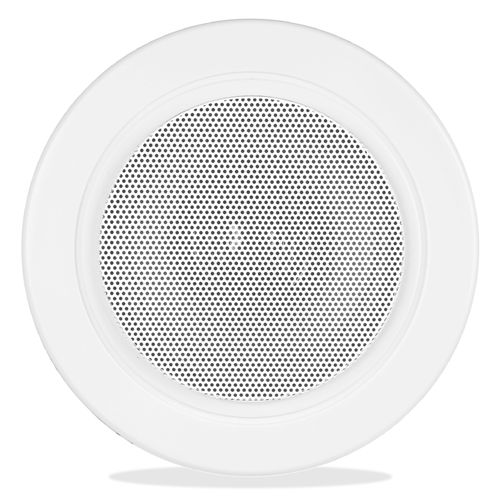

Ceiling-mounted loudspeaker AWP06

invisiblepassiveresidential

These high-quality outdoor IP-rated ceiling speakers are especially designed for use in applications with high humidity levels such as bathrooms, wellness, swimming pool areas and many more! Full Weatherproof audio solutions High fidelity music reproduction and intelligibile speech Lifetime stability and great installer convenience SpringFit™ waterproof ceiling speaker 8Ω and 100V IP65 Ingress protection Aluminum grill Multi-tapping 100V line transformer 4"dual cone driver Spring-clamp mounting mechanism plastic enclosure The AWP06 is a waterproof ceiling speaker with a power of 6 Watt which meets the IP65 standard. It is designed to be used in a wide variation of in- and outdoor applications and damp locations and features a 4" loudspeaker. Due to its wide smooth frequency response and high efficiency, it ensures high-fidelity music reproduction and intelligible speech at very low distortion. It can be used in 8 Ohm low impedance systems or in 100V PA systems with power taps for 6 Watt, 3 Watt and 1.5 Watt. System specifications Frequency - Response (± 3 dB) - 100 Hz - 15 kHz Sound Pressure (Max. W/1m) - 95 dB Line Transformer Tappings - 1 - 6 W / 1666 Ω 2 - 3 W / 3333 Ω 3 - 1.5 W / 6666 Ω Impedance - 8 Ω Ingress Protection rating - IP65 Drivers - 4” Peak power handling - 20 W Product Features Built-in depth - 148.5 mm Cut-out measurement - 125 mm (Ø) Operating temperature - -20 °C ~ 60 °C Colours - White (RAL9010)
